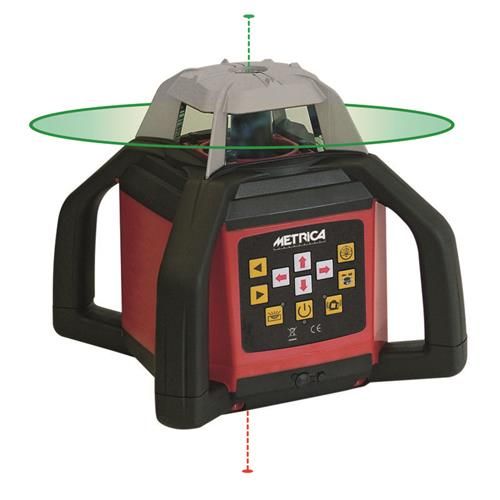

Metrica - Rotatie-laser Rotativo HV4, Ø500m; 3mm/30m IP66

Omschrijving:
◾ High-sensitivity 4-line receiver
◾ Metal cover
◾ Self-levelling laser with visible rotating beam: creates a horizontal plane, self-leveled, and 2 plumb lines
◾ IP 66 dust/waterproofing: protected against ingress of dust and water
◾ By rotating the unit 90°, the unit generates a vertical self-leveled laser plane and two horizontal beams.
◾ SCANNER function to project a more visible and shorter line (adjustable to 4 lengths)
◾ SLOPE function (manual inclinations X, Y)
◾ MANUAL function, which excludes automatic levelling and allows the unit to be tilted at will
◾ TILT function: In case of unintentional movement the device switches off the laser beam.
◾ Laser with 4 rubberized handles for easier grip and increased protection
◾ Receiving the remote control on the 4 sides of the unit
◾ Rechargeable batteries and charger included or alternatively 4 alkaline batteries 1.5 V LR14

Specificaties:
◾ Leveling accuracy ↔ horizontal ± 3 mm / 30 m vertical ± 5 mm / 30m
◾ Self-leveling rang ↔ ± 5°
◾ Autonomy ↔ 30 hours
◾ Working range ↔ 500 m (with receiver)
◾ Rotational speeds ↔ 0-60-120-300-600 rpm
◾ Scanner function ↔ 10° - 45° - 90° - 180°
◾ Tilt function ↔ yes
◾ Out of levelling signal ↔ yes
◾ Laser type ↔ 638 nm, 1 mW
◾ Laser output ↔ Class 2
◾ Power supply ↔ 4 x NiMH C4000mAh 1,2 V rechargeables
◾ Dimensions ↔ 220 x 220 x 210 mm
◾ Operating temperature ↔ -10 °C / +50 °C
◾ Weight (without batteries) ↔ 3,5 Kg
◾ IP Protection ↔ IP 66
◾ Tripod thread ↔ 5/8"
◾ Remote control distance ↔ 30 / 10 m (in/out)
◾ Batteries for remote control ↔ 2 x 1,5 V DC
◾ Batteries for the receiver ↔ 1 x 9 V DC
