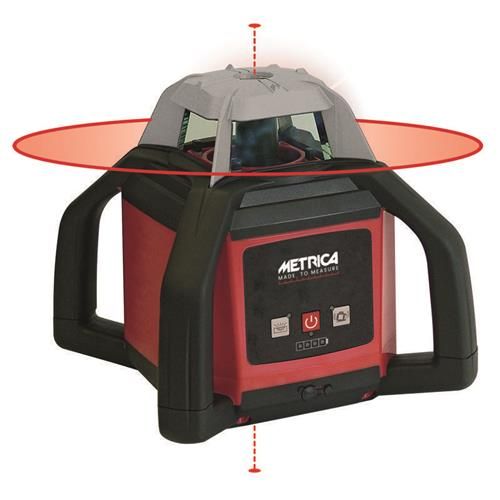

Metrica - Rotatie-laser Rotativo H4, Ø500m; 3mm/30m IP66

Omschrijving:
◾ Automatic laser level with visible rotating red beam: generates a horizontal self-leveled plane and the plomb line
◾ Dust/Waterproofing IP 66 resists completely to dust.
◾ Water protection: protected against water splashing from any direction
◾ SCANNER function to draw a more visible and shorter line with 4 different lengths
◾ SLOPE Function
◾ MANUAL function that excludes automatic leveling and allows to tilt the device for tracing inclined planes
◾ TILT function: in case of accidentally moving the unit, the beam stops
◾ 4 rubber handles for easy and effective grip
◾ Remote control receiving on 4 sides of the unit

Specificaties:
◾ Leveling accuracy H. ↔ ± 3 mm / 30 m
◾ Self-leveling range ↔ ± 5°
◾ Autonomy ↔ 30 hour
◾ Working range ↔ diam 500 m (depending on weather conditions)
◾ Rotational speeds ↔ 0-60-120-300-600 rpm
◾ Scanner function ↔ 0° - 10° - 45° - 90° - 180°
◾ Tilt function ↔ si
◾ Laser type ↔ 635 nm, 1mW
◾ Laser output ↔ Class 2
◾ Power supply ↔ 4 x NiMH C4000mAh 1,2 V rechargeables
◾ Dimensions ↔ 220 x 220 x 210 mm
◾ Operating temperature ↔ -10 °C / +50 °C
◾ Weight (without batteries) ↔ 3,5 kg
◾ Impermeability ↔ IP 66
◾ Tripod thread ↔ 5/8"
◾ Remote control distance ↔ 30 / 10 m (in/out)
◾ Batteries for remote control ↔ 2 x 15 V DC
◾ Battery for the receiver ↔ 1 x 9 V DC
