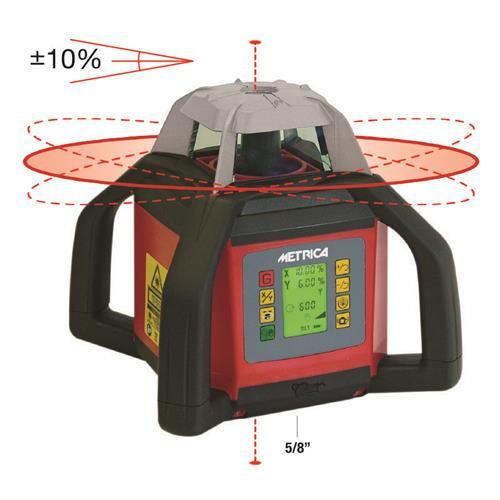

Metrica - Rotatie-laser Rotativo Incligrad 2, Ø500m; 3mm/30m

Omschrijving:
◾ High-sensitivity receiver with deviation indication in mm
◾ Metal cover
◾ Creates a horizontal, vertical or inclined plane that can be adjusted by ± 10% in X and Y direction and two plomb lines
◾ Adjustment of the inclined plane shown on the display
◾ By rotating the unit 90°, the unit generates a vertical self-leveled laser plane and two horizontal beams
◾ SCANNER function to project a more visible and shorter line (adjustable to 4 lengths: 10° - 45° - 90° - 90° - 180°)
◾ TILT function: In case of unintentional movement the device switches off the laser beam.
◾ Step-by-step rotation function
◾ MANUAL function which excludes automatic levelling
◾ Laser with 4 rubberized handles for easier grip and increased protection
◾ Remote control reception on the 4 sides of the unit for adjusting the X and Y axis inclinations
◾ Rechargeable batteries and charger included or alternatively 4 alkaline batteries 1.5 V LR14

Specificaties:
◾ Leveling accuracy ↔ horizontal ± 3 mm / 30 m vertical ± 5 mm / 30m
◾ Self-leveling range ↔ ± 5°
◾ Slopes of setting range ↔ ± 10%
◾ Autonomy ↔ 30 hours
◾ Working range ↔ 500 m (with receiver)
◾ Rotational speeds ↔ 0-60-120-300-600 rpm
◾ Scanner function ↔ 10° - 45° - 90° - 180°
◾ Tilt function ↔ yes
◾ Signal out self-leveling ↔ yes
◾ Laser type ↔ 635 nm, 1 mW
◾ Laser output ↔ Class 2
◾ Rechargeable batteries ↔ 4 x C4000 mAh 1,2 V NI-MH
◾ Dimensions ↔ 220 x 220 x 210 mm
◾ Operating temperature ↔ -10°C / +50°C
◾ Weight (without batteries) ↔ 3,5 Kg
◾ IP Protection ↔ IP 54
◾ Tripod thread ↔ 5/8"
◾ Remote control distance ↔ 20 / 50 m (in/out)
◾ Batteries for remote control ↔ 2 x 15 V DC
◾ Batteries for receiver ↔ 1 x 9 V DC
